1991 Scanmar 345

Price

£30,000

Year

1991

Length

34.42 ft

Location

Suffolk Yacht Harbour IP10 0LN

Description

Specification

360 Images

Basic Boat Information

Make

Scanmar

Model

345

Designer

Rolf Magnusson

Price

£30,000

Condition

used

Year

1991

Keel Type

Fin Keel

Dimensions

Length

34.42 ft

Waterline Length

0.00 ft

Beam

11.08 ft

Max Draft

5.58 ft

Displacement

4500 kg

Engines/Speed

Engine

Volvo Penta 2003, 28hp

Fuel

diesel

Engine Power

Horsepower

Tanks

Fuel Tank Capacity

70 l

This is a glorious example of the well-respected Scanmar 345. She has been in her present ownership since 1998 and has been maintained and updated constantly since then. Seven berth layout with a single and double aft cabin, double forward and two in the saloon. Full suite of navigation electronics, four sails and even an overall winter cover make her inventory complete for her next owner.

Viewing by appointment only through the Suffolk office - 01473 659681 or email: suffolk@clarkeandcarter.co.uk

Accommodation

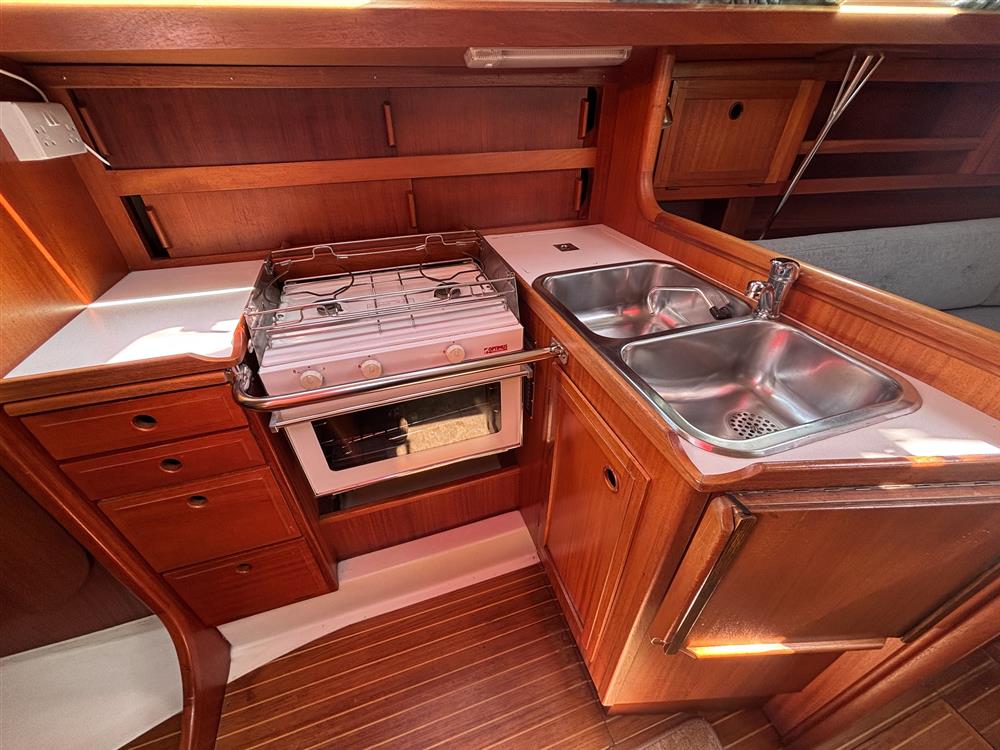

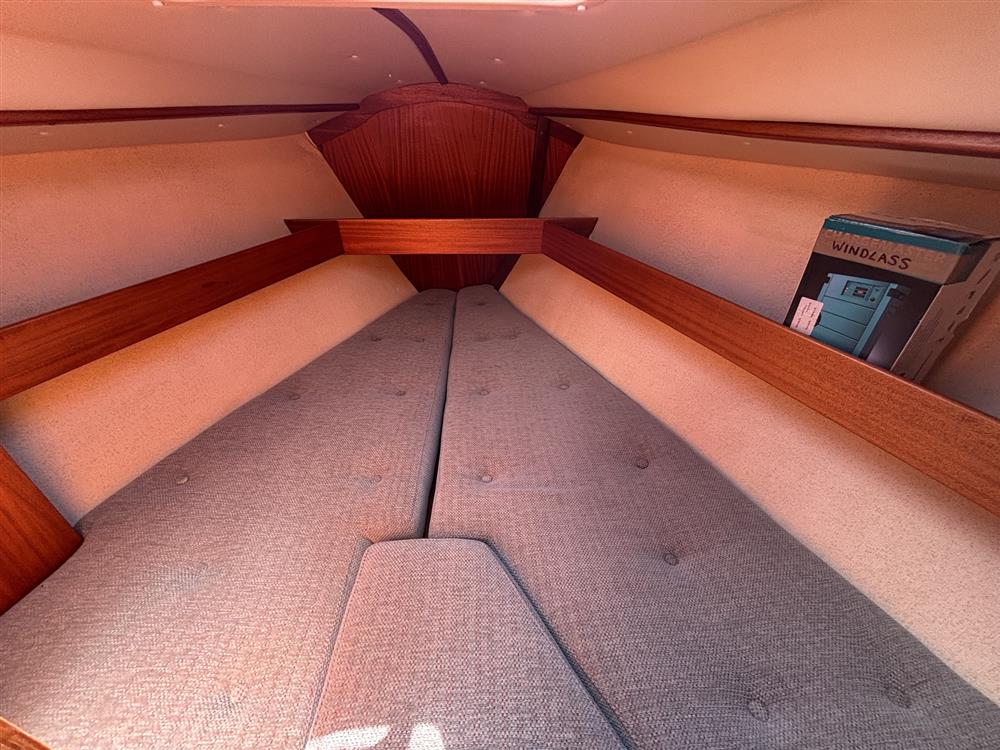

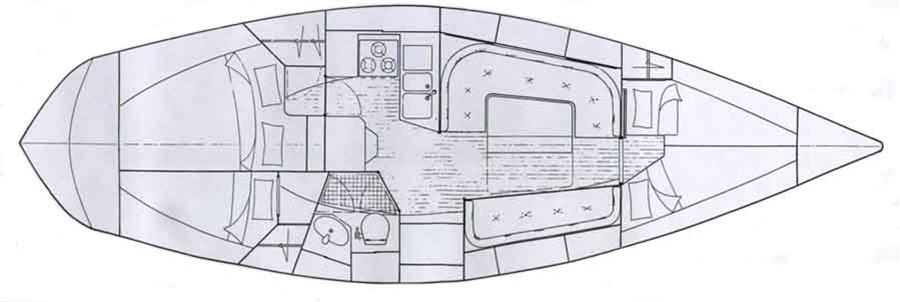

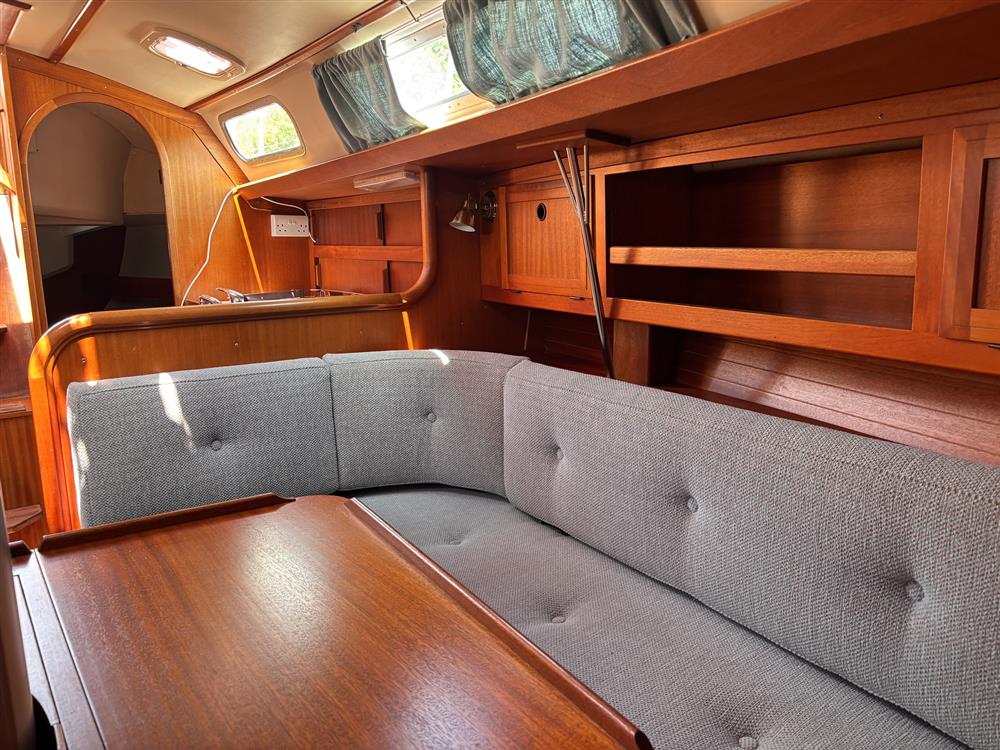

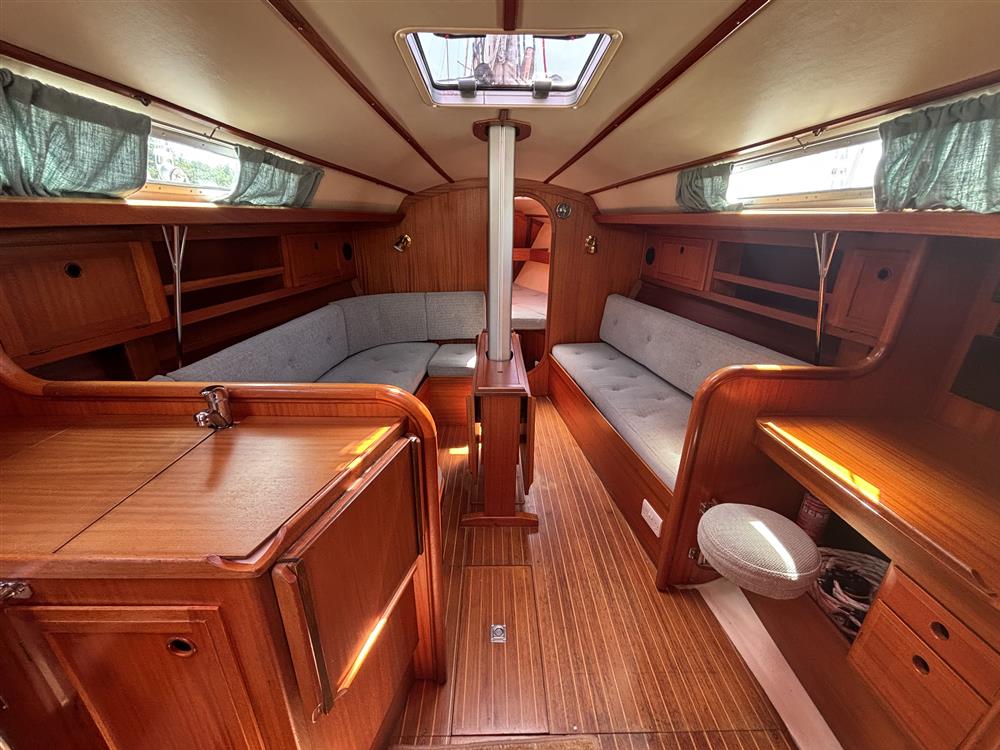

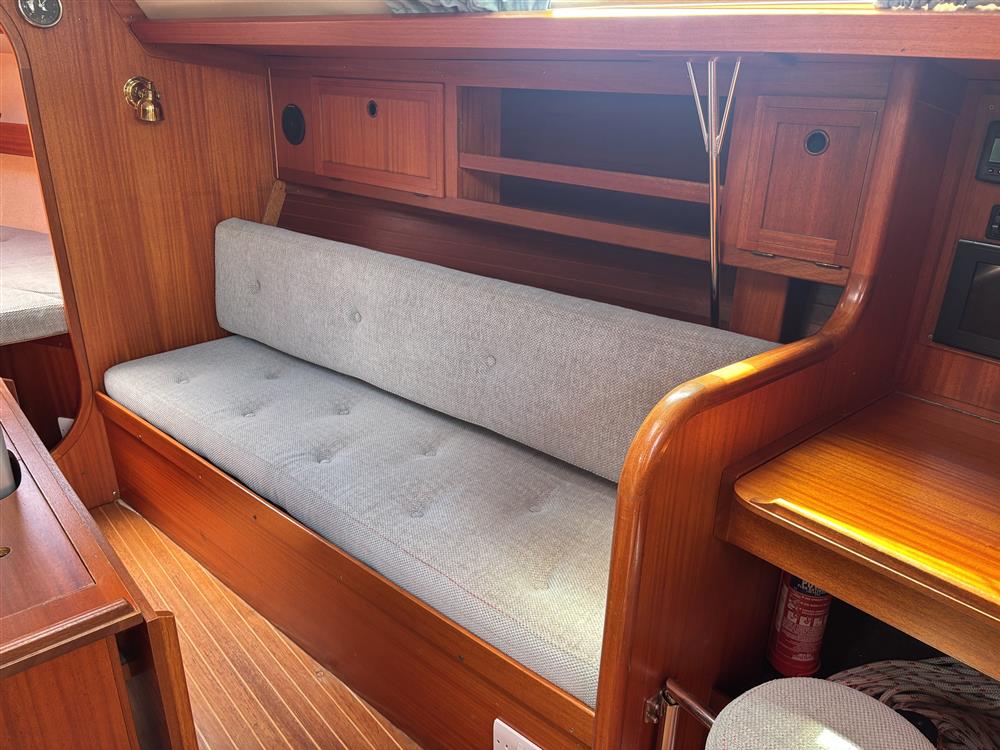

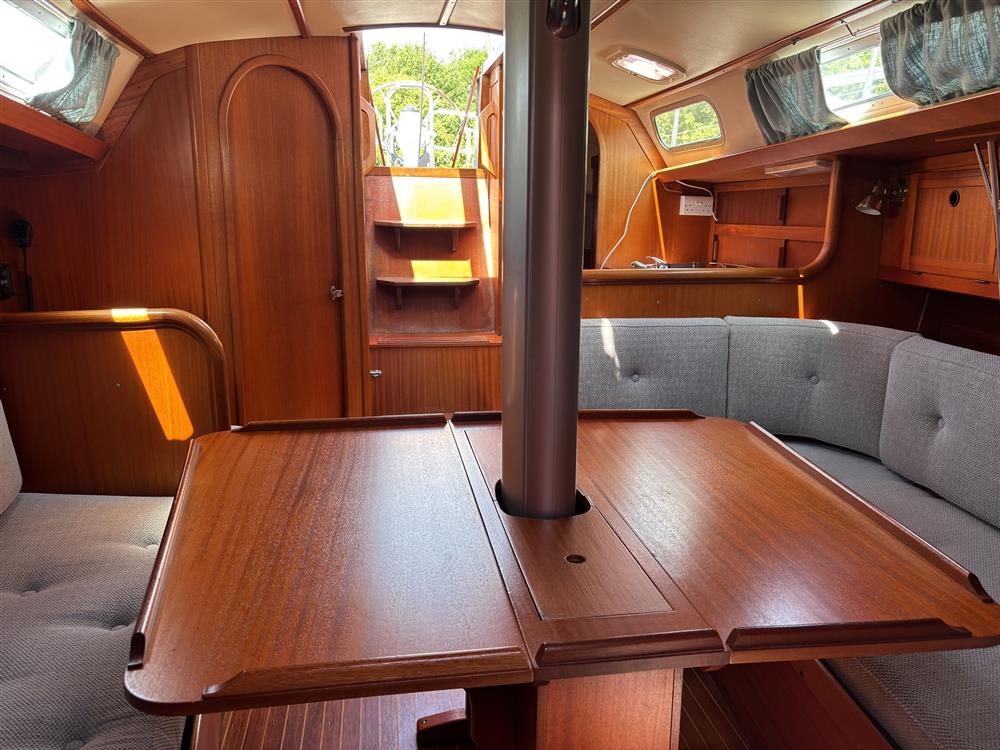

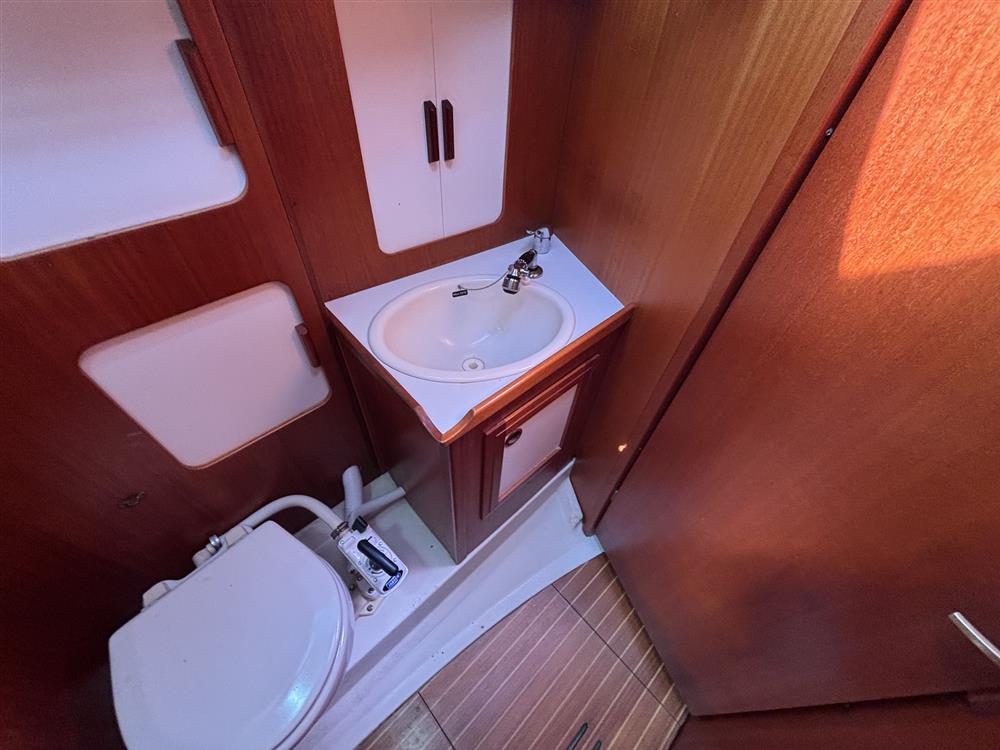

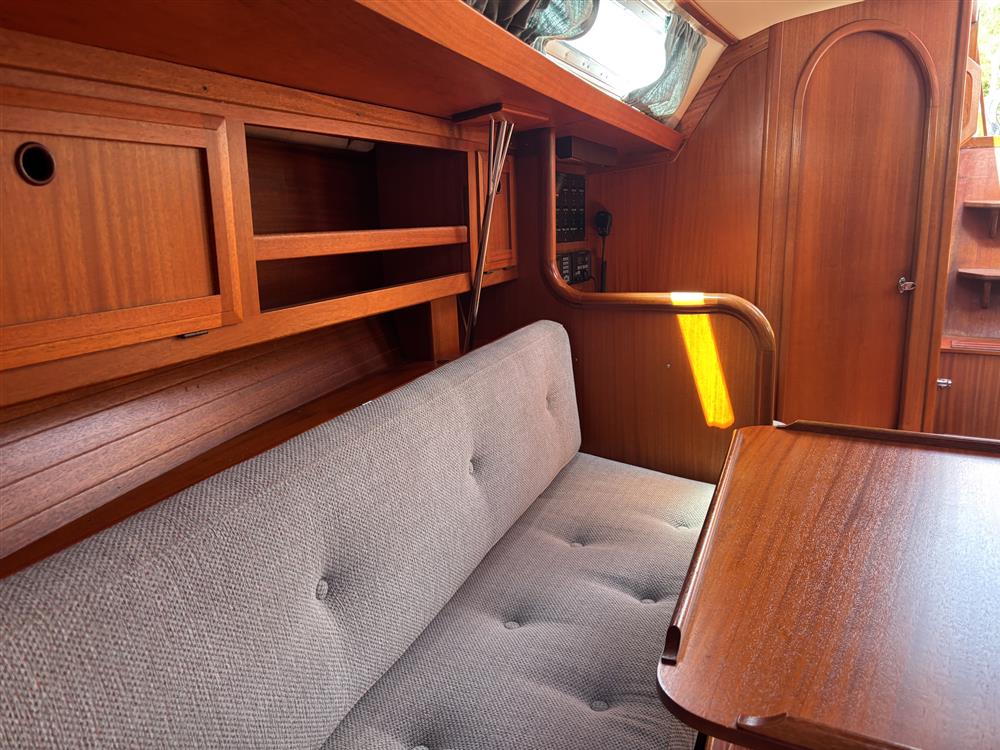

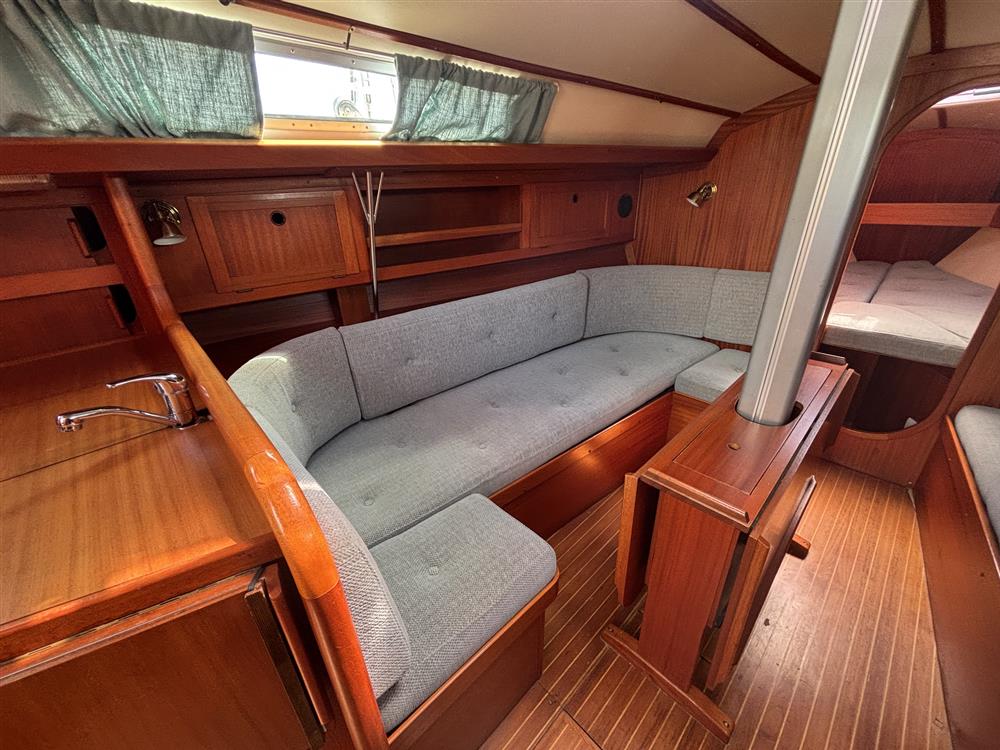

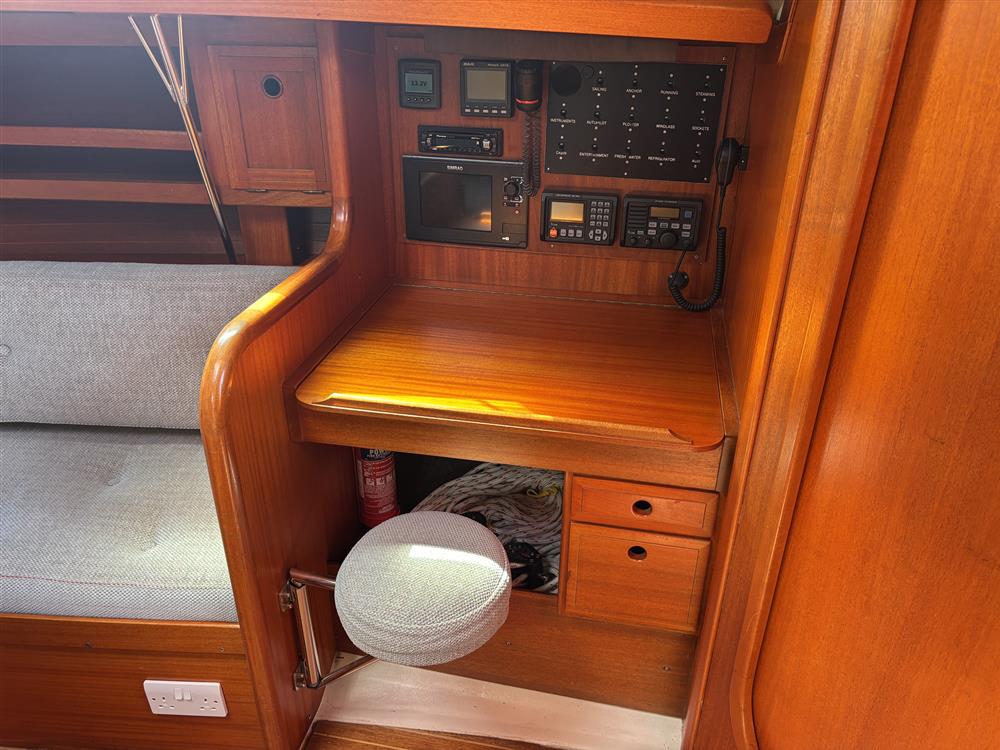

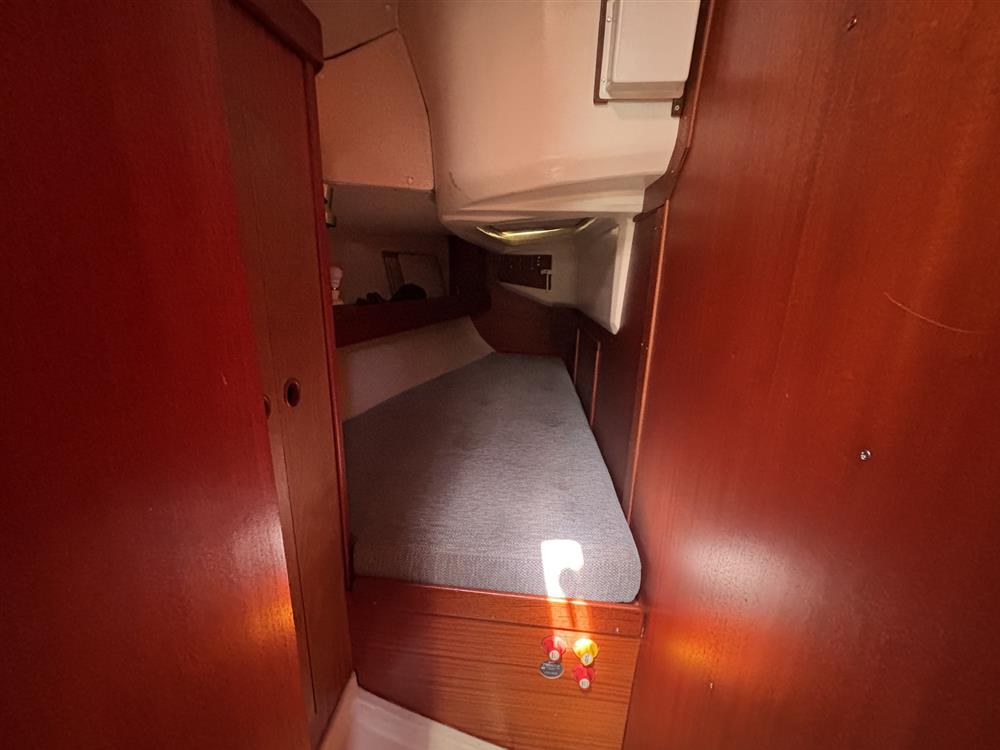

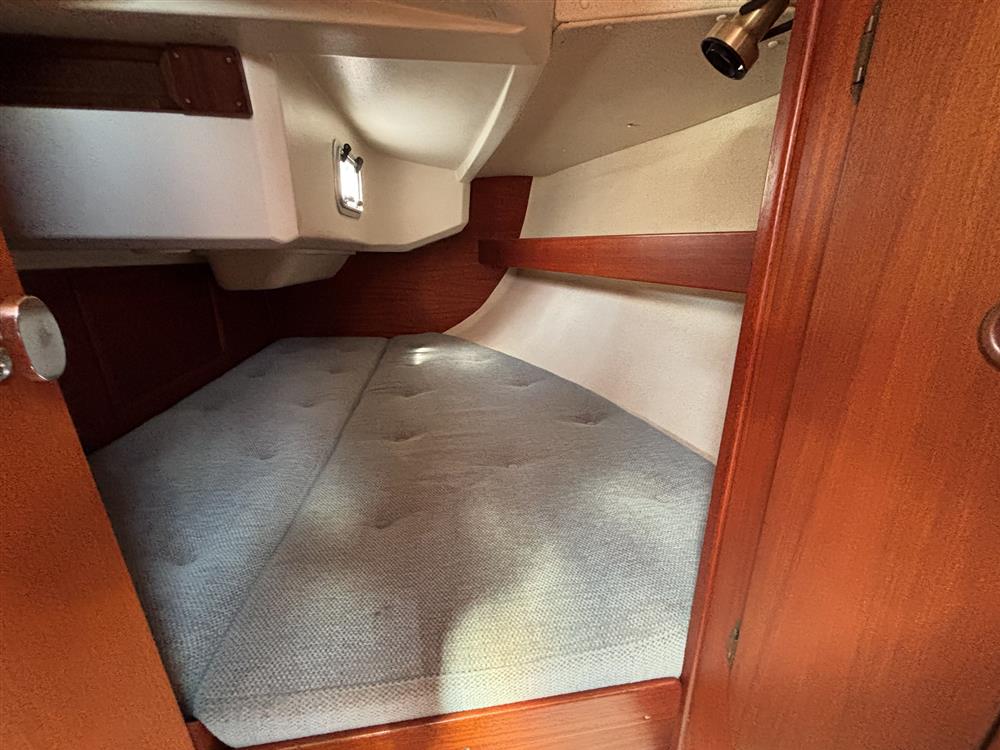

Fitted out in high quality Mahogany woodwork and good headroom. She has a forward cabin with a removable infill to offer either a double or two single berths. The saloon has two settee berths (one U shaped) with drop leaf table between. The chart table is to starboard and is outboard facing with a swing out button navigator seat. The L shaped galley is opposite and to port. This has double stainless steel sinks (hot and cold pressurised supply), top loading fridge and Optimus two burner gas cooker with oven. Plenty of galley stowage. The double aft cabin is to port. There is a single berth aft cabin to starboard accessed via the heads compartment. The heads compartment has a Jabsco marine toilet (with 60 litre holding tank), basin and shower. Curtains to saloon and heads. Pale blue fabric upholstery in very good condition. Matching curtains. Hanging lockers and shelving to all sleeping cabins. Hot water via calorifier heated via the engine and 240V immersion heater. 125 litre water tank capacity.

Mechanical Systems

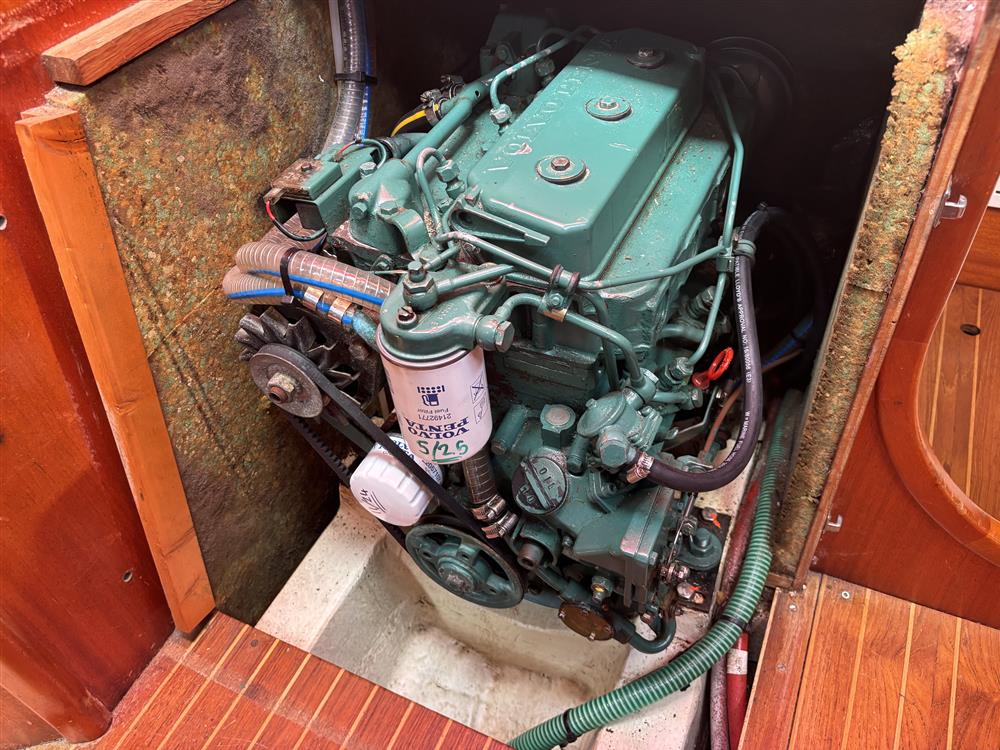

Located under companionway. 1991 Volvo Penta 2003 marine diesel engine. Three cylinders, 28hp. Saildrive to fixed two blade propeller (new ring and diaphragm in 2024). Single lever engine controls. 70 litre fuel capacity. The engine is professionally serviced and winterised annually by the onsite Yanmar dealers. New control cable and fuel lines in 2025.

Electrical Systems

Three 12v AGM batteries in two banks charging via engine alternator and 240v shore power charger. 2024 windlass AGM battery. Battery monitor system at chart table. Full shore power system with sockets throughout interior, immersion heater and battery charger.

Sails and Spars

Fractionally rigged Bermudan sloop. Keel stepped alloy mast and boom. Stainless-steel standing rigging (2016). Backstay tensioner. Terylene running rigging led aft to the cockpit. Harken Mk.IV 1 headsail furling system. Slab reefing to mainsail with lazyjacks. Selden rod kicker. Two sheet and two control line winches, all self tailing with covers. Six winch handles. Towing genoa cars. Main sheet traveller.

  • Mainsail / Vantage 1 membrane cloth / One Sails / 2014
  • Furling Genoa / Vantage 1 membrane cloth / One Sails / 2014
  • 140% Furling Genoa / Parker & Kay Sails / 2000
  • Asymmetric Spinnaker / S Graphic cloth / One Sails
  • Deck Equipment

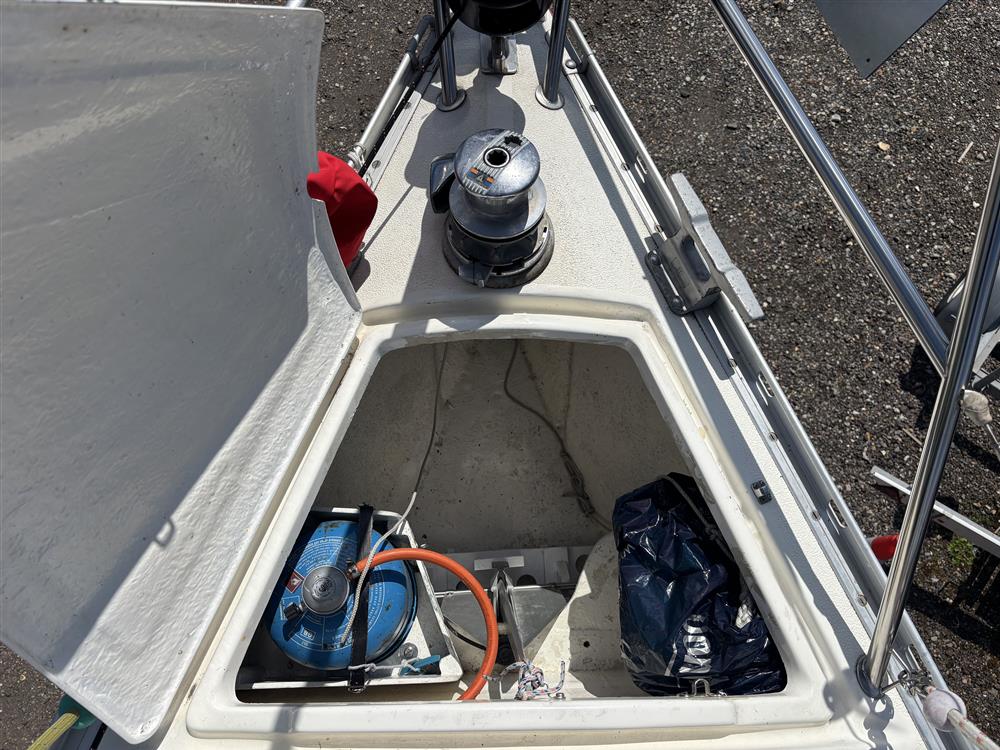

  • SL Anchorman electric anchor windlass with rope gypsy
  • Sowester 35Lb anchor
  • Fortress FX16 main anchor
  • Fortress FX7 kedge anchor

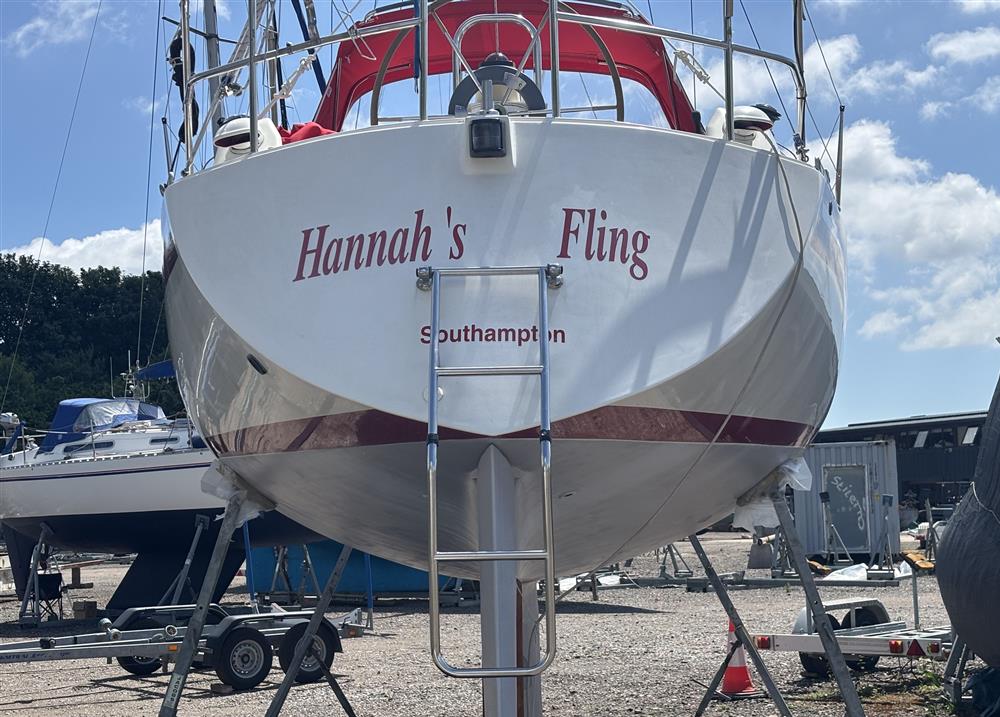

  • Stainless steel transom mounted swim ladder

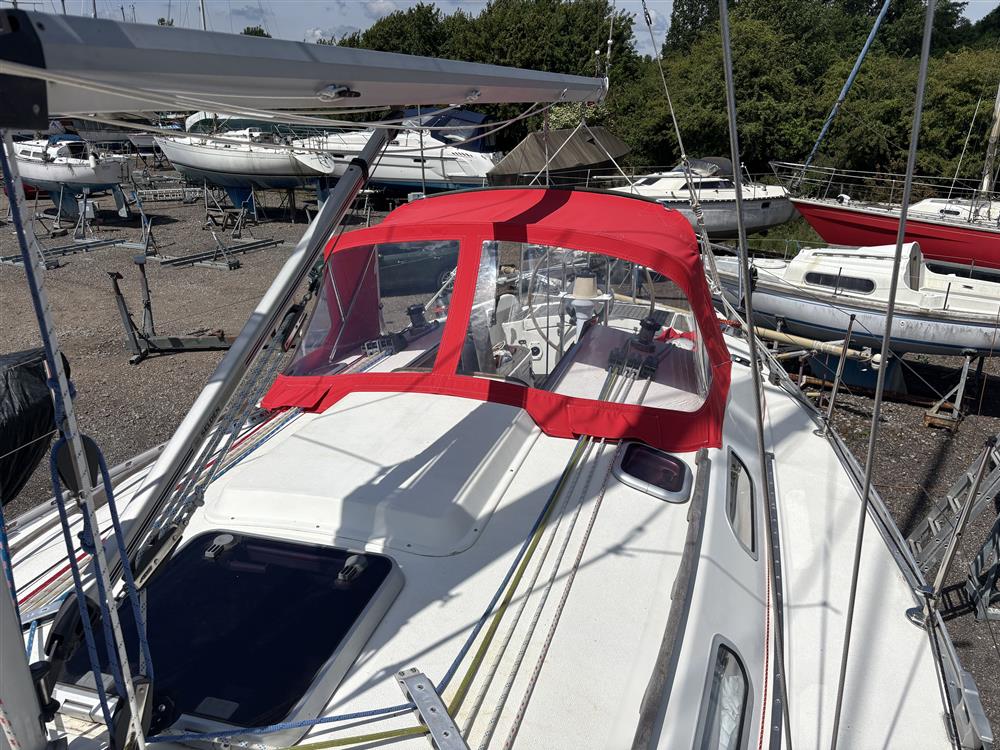

  • Sprayhood in red, 2023, with leather covered handle
  • Mainsail cover in red, 2023
  • Binnacle cover in red, 2023
  • Winch covers in red
  • Hatch covers in red
  • Halyard bags in red, 2023
  • Canvas winter cover in 3 parts
  • Ten fenders
  • Two tripod legs for antifouling cradle patches
  • Winter storage cradle
  • Navigation Equipment

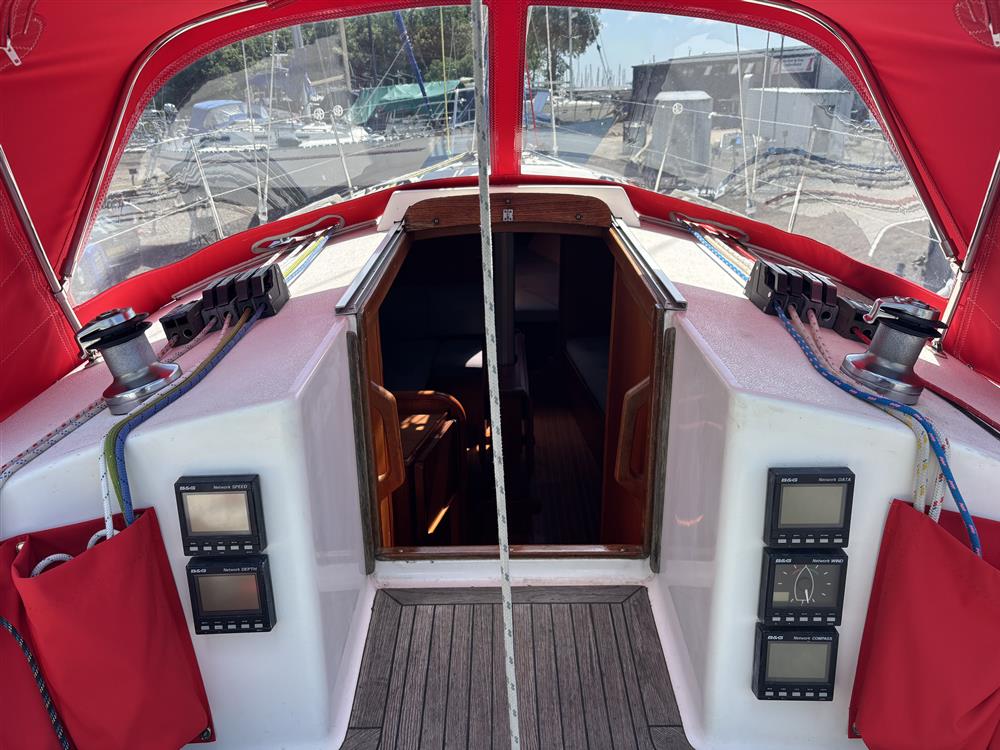

  • B&G Speed, depth, Data, Wind & Compass
  • Raymarine wheel pilot with remote control head

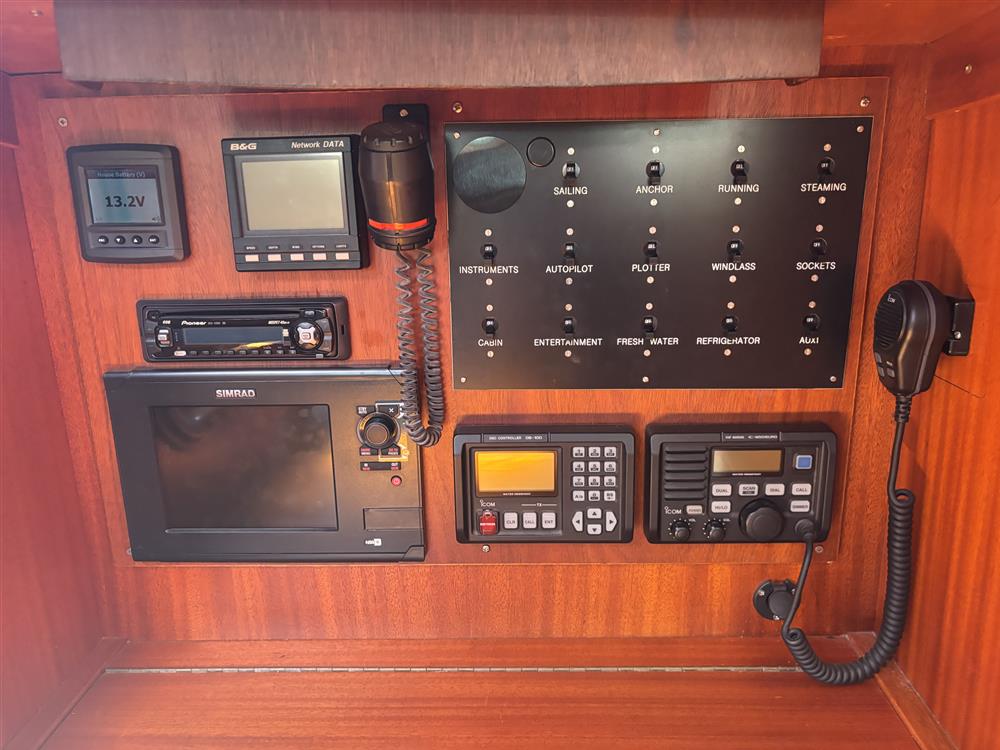

  • At chart table:
  • Simrad NSS8 chart plotter/GPS
  • B&G Network Data display
  • ICOM M-501Euro VHF radio
  • ICOM DY-100 DSC controller
  • Pioneer radio/CD player
  • Silva binnacle mounted steering compass
  • Deck level and masthead navigation lights
  • Safety Equipment

  • Webbing jackstays
  • Four cockpit harness points
  • Horseshoe lifebuoy with floating light
  • Manual and electric bilge pumps
  • Two life jackets
  • Emergency tiller
  • Construction

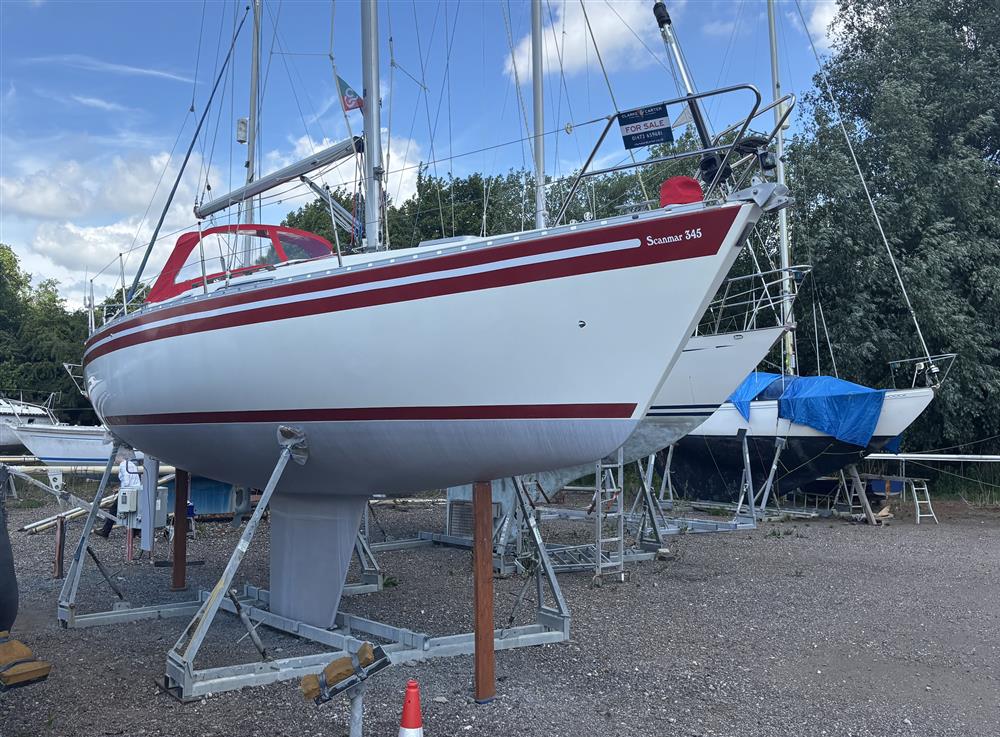

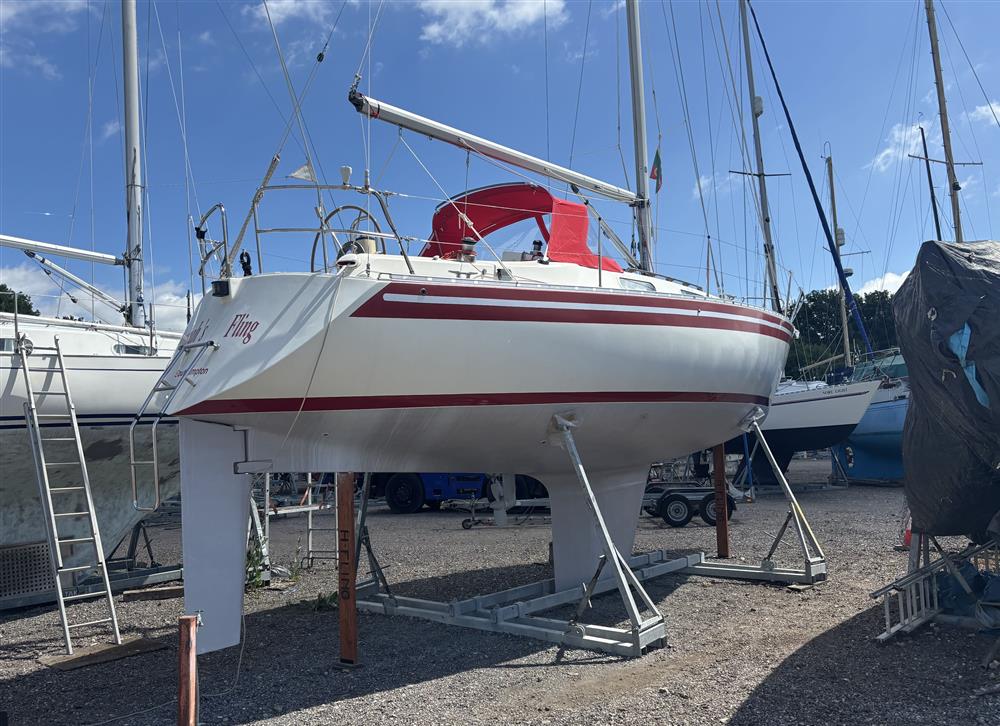

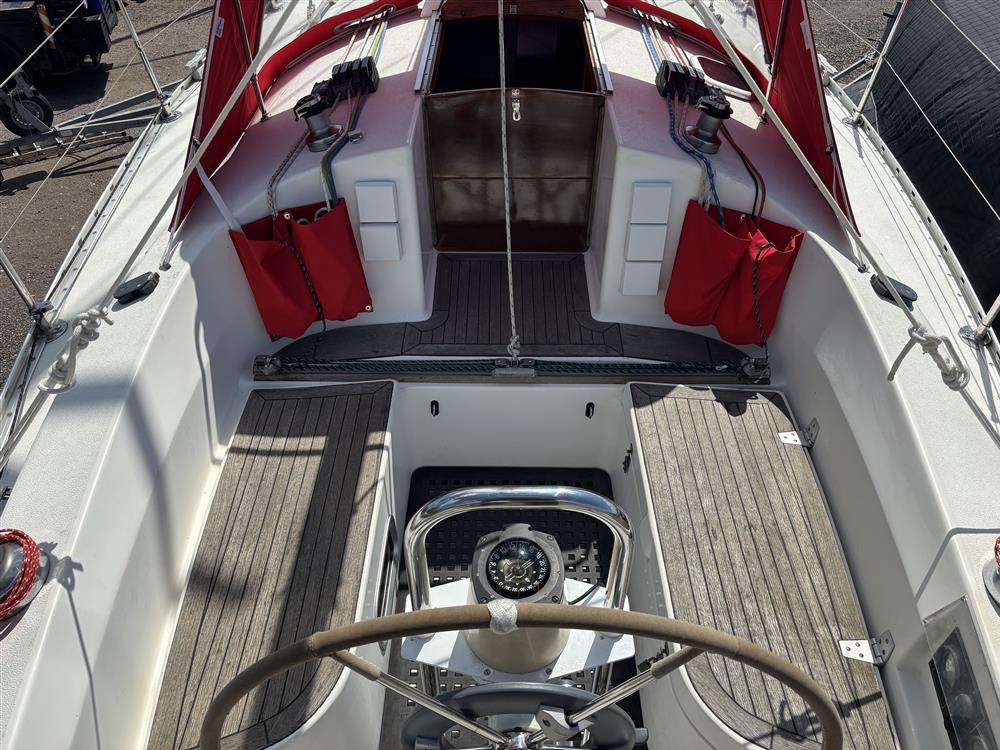

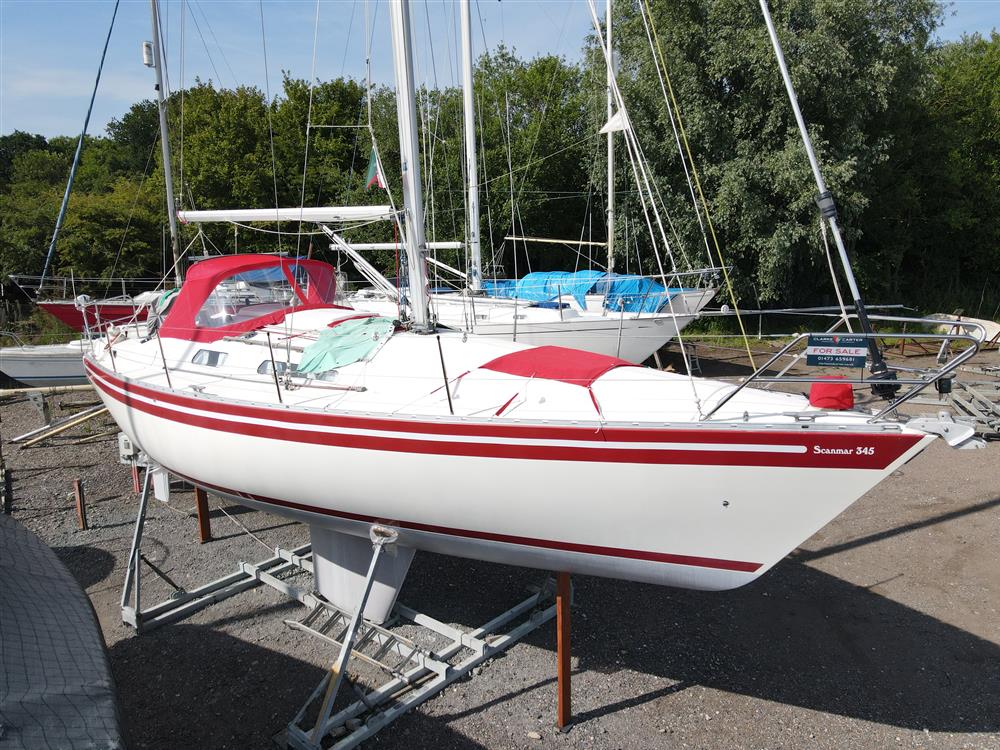

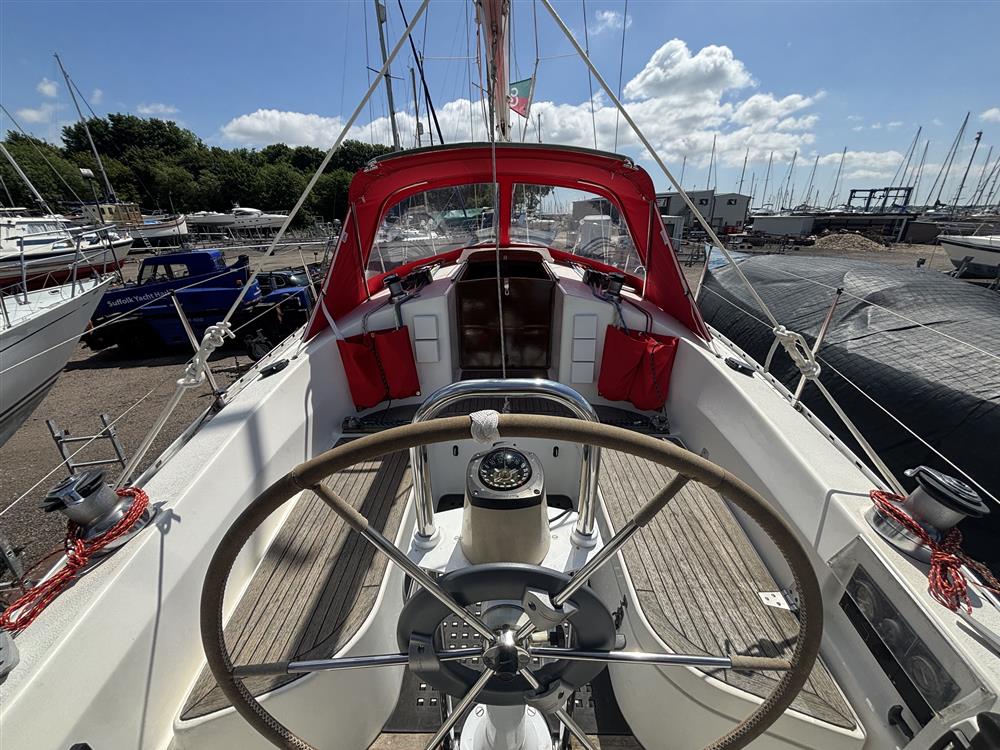

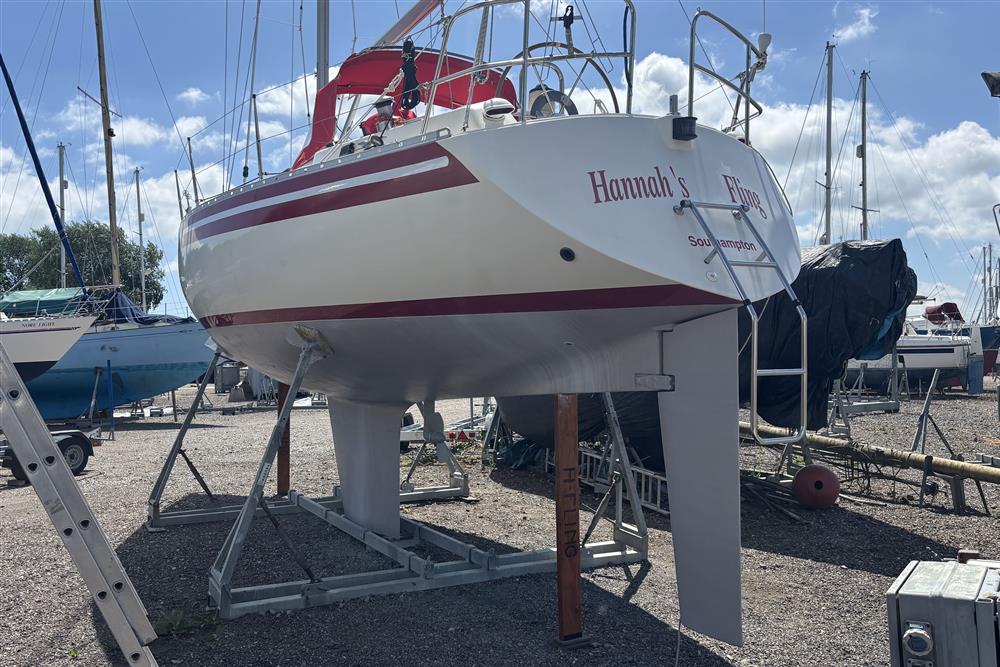

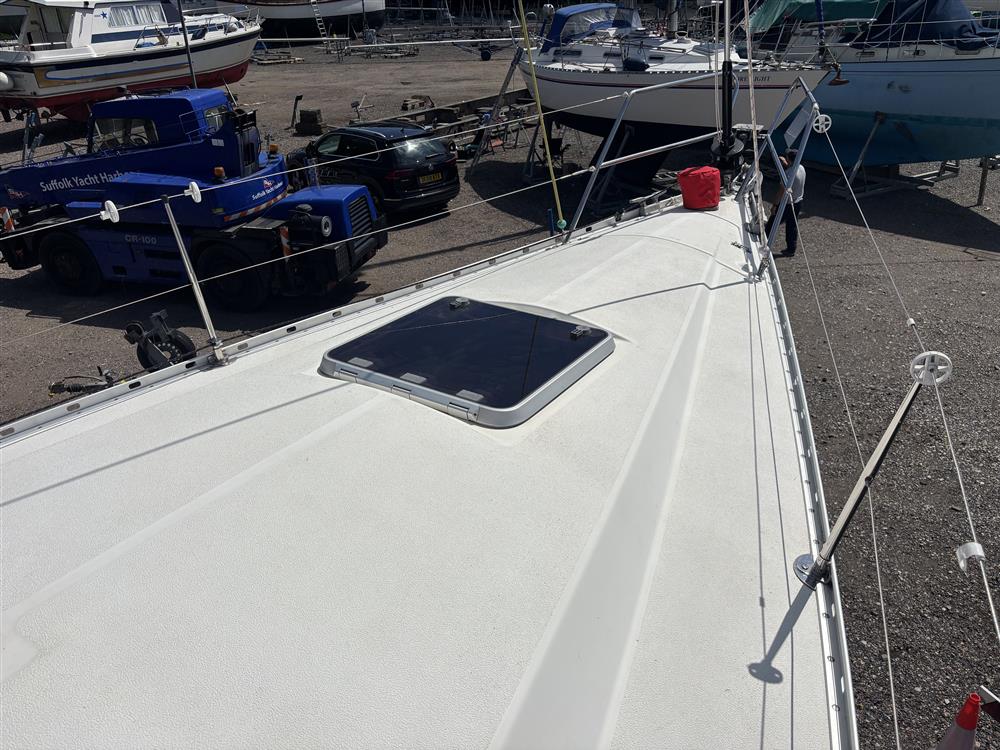

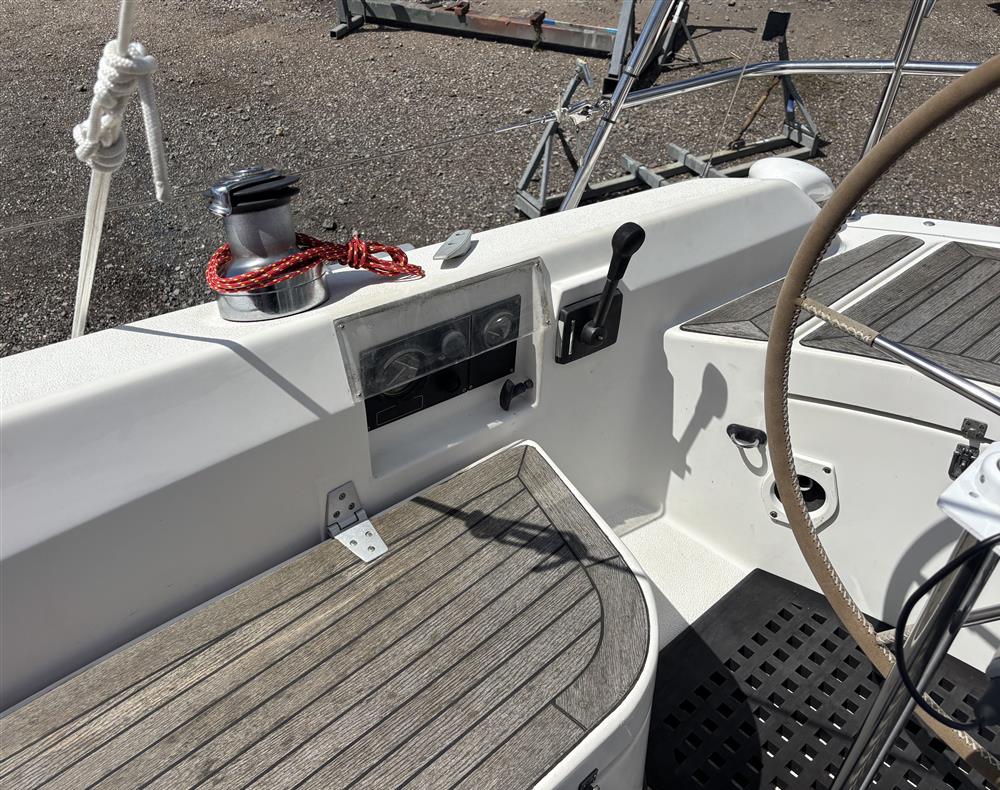

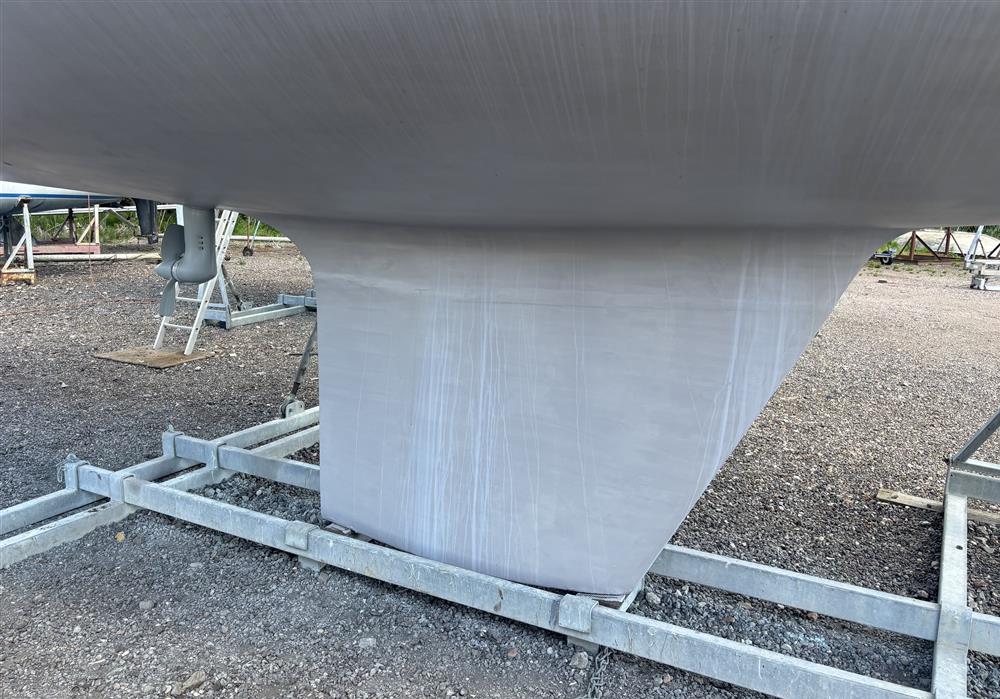

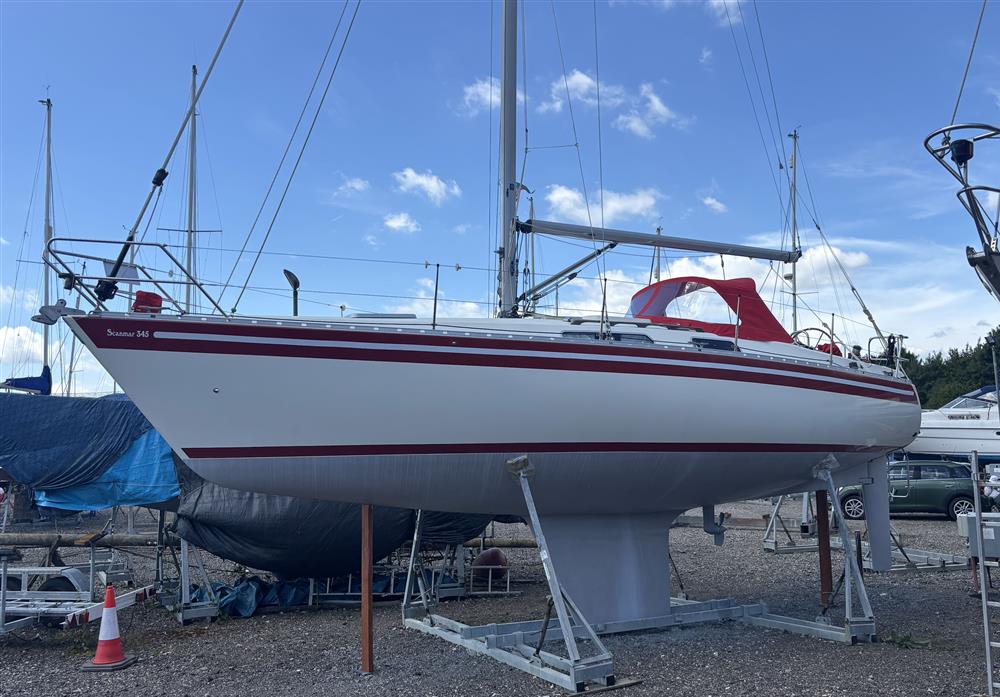

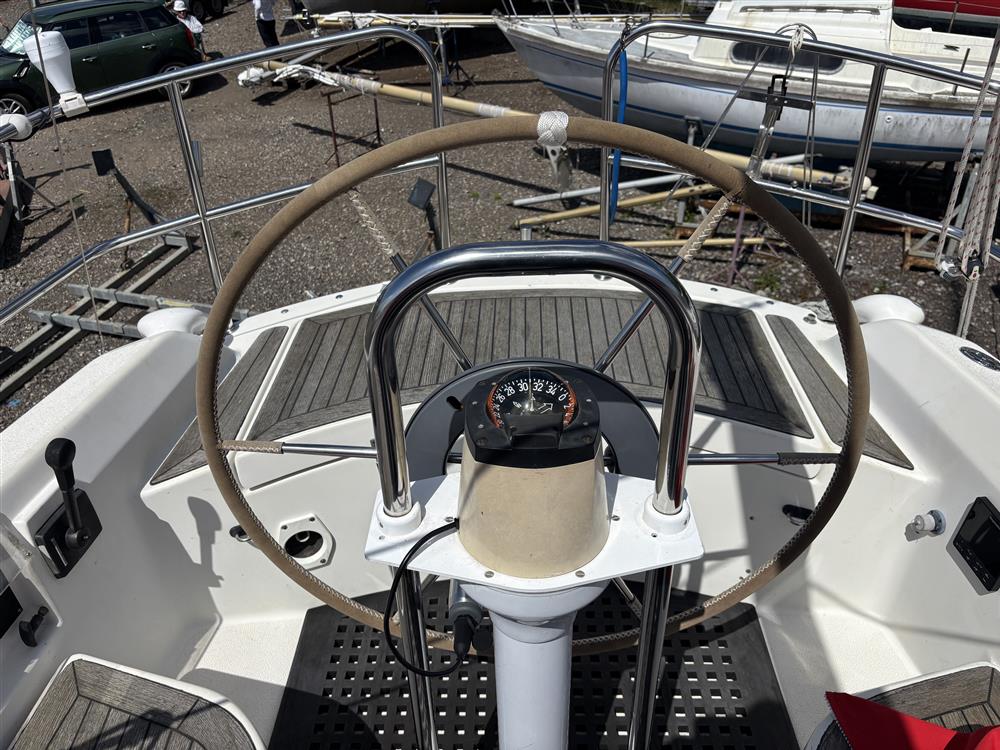

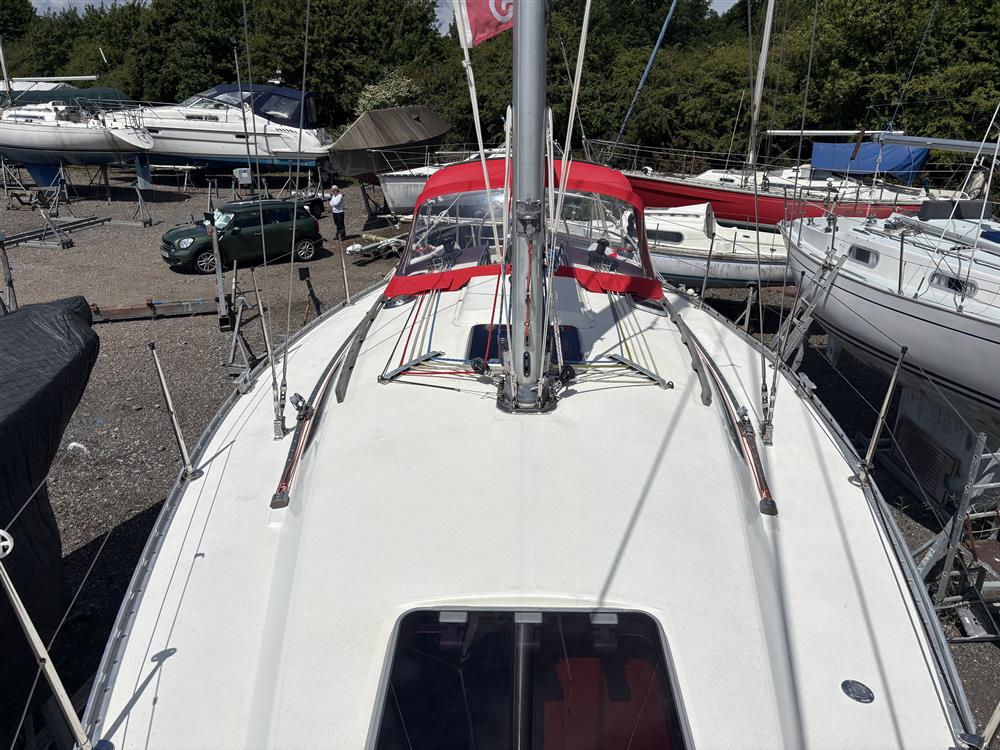

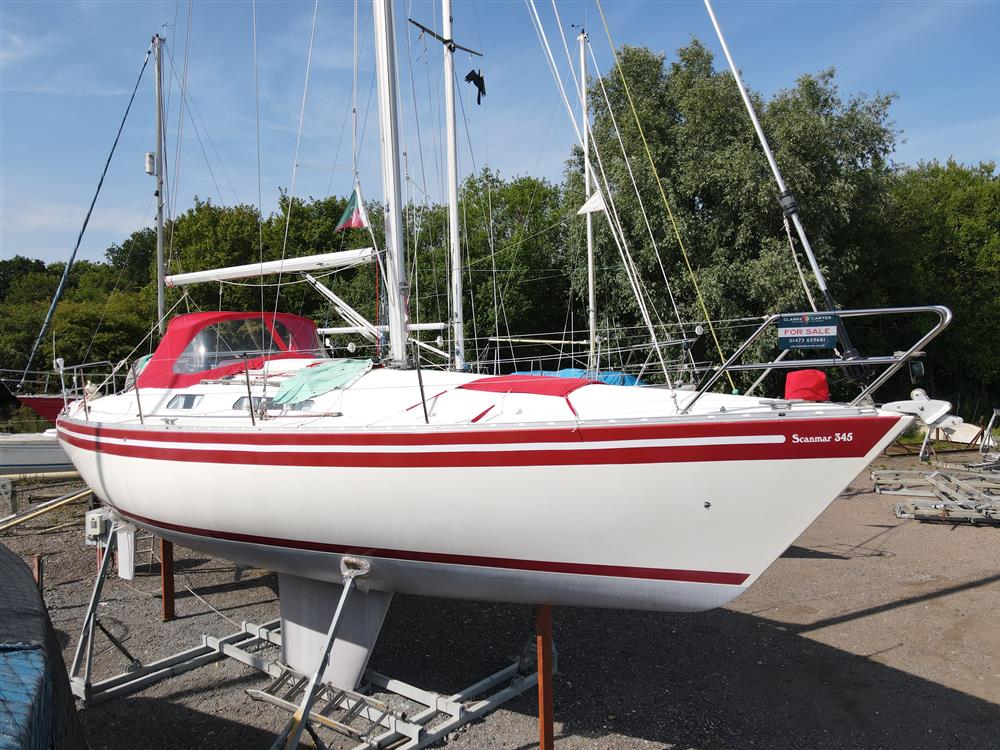

    Built by Scanmar Yachts to Rolf Magnusson design in 1991. White hand laid grp hull with red style stripes at waterline and topsides. White grp coachroof with moulded non-skid decks. Teak laid cockpit seats and teak sole grating. Self draining cockpit and anchor well. Cast iron fin keel. Whitlock wheel steering to single rudder. Stainless steel safety rails, stanchions and guard wires. Step thru bow rail. Alloy toe rails with six alloy mooring cleats. Hinging anchor stem head fitting. Five Lewmar deck hatches. Wintered ashore annually under 3 part cover. Keel bolts checked and re-torqued in 2021.

    Disclaimer:

    The company normally acts as brokers for the vendor who unless otherwise stated is not selling in the course of a business. Whilst every care has been taken in the preparation of these particulars the correctness is not guaranteed and they are intended as a guide only and do not constitute a part of any contract. A prospective buyer is strongly advised to check these particulars and where appropriate and at his own expense to employ a qualified marine surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability on our part.
    General note on safety equipment: Any safety equipment such as liferaft, fire extinguishers and flares etc., are usually personal to the current owner(s) and if being left on board as part of the sale of a used vessel, may require routine servicing, replacement, or changing to meet the specific needs of the new owner(s).
